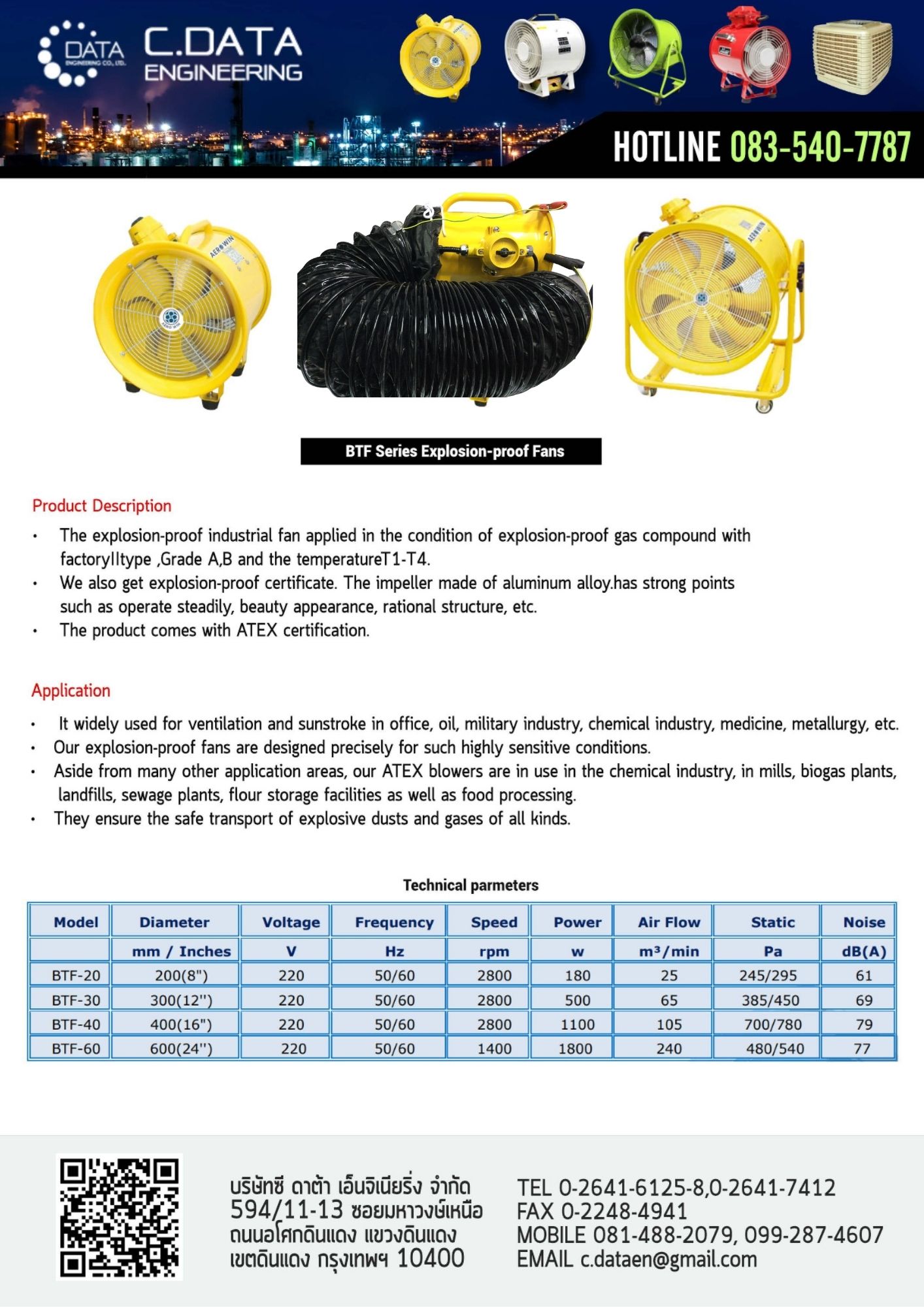

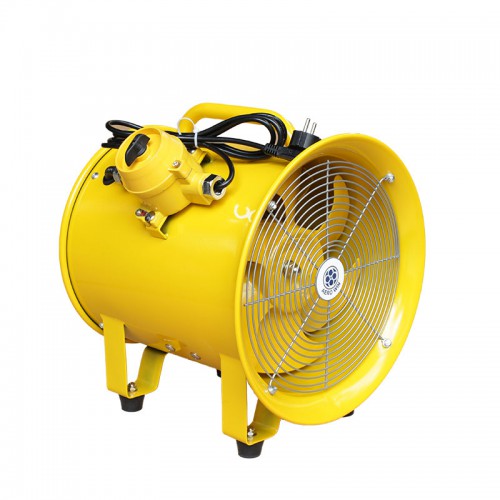

The explosion-proof industrial fan applied in the condition of explosion-proof gas compound with factoryⅡtype ,Grade A,B and the temperatureT1-T4.It widely used for ventilation and sunstroke in office, oil, military industry, chemical industry, medicine, metallurgy, etc.We also get explosion-proof certificate. The impeller made of aluminum alloy.has strong points such as operate steadily, beauty appearance, rational structure, etc.The ATEX certificate is in progress now.The Explosion-proof Mark is EX d IIB T4
รายละเอียดสินค้า
อุปกรณ์เพิ่มเติม (OPTIONS)
Technical Parmeters
| Model | BTF- 20 | BTF- 30 | BTF- 40 | BTF- 60 |
|---|---|---|---|---|
|
Diameter (mm)
|
200 (8″)
|
300 (12″)
|
400 (16″)
|
600 (24″)
|
|
Voltage (V)
|
220
|
220
|
220
|
220
|
|
Frequenc y(Hz)
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Speed (r/min)
|
2800
|
2800
|
2800
|
1400
|
|
Power (W)
|
180
|
500
|
1100
|
1800
|
|
Air Flow (cmh)
|
1500
|
3900
|
6300
|
14400
|
|
Air Flow (cfm)
|
900
|
2340
|
3780
|
8640
|
|
Static (pa)
|
245/295
|
385/450
|
700/780
|
480/540
|
|
Noise dB(A)
|
61
|
69
|
79
|
77
|
|
Weight (kg)
|
12
|
15
|
26
|
68
|
