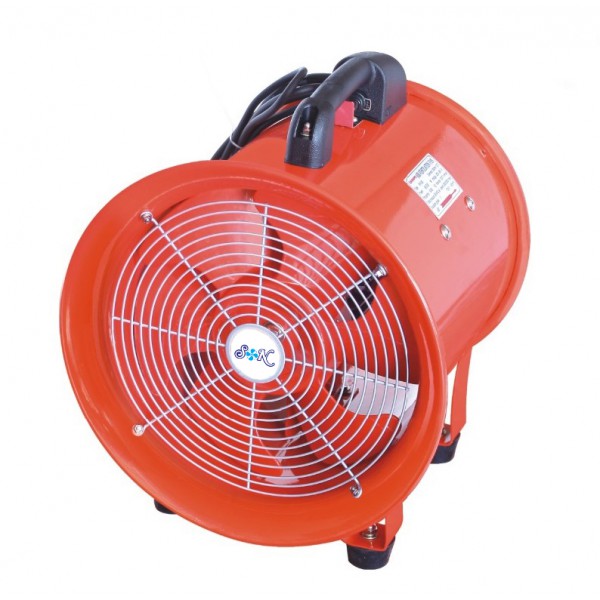

Air-Ventilation Fan

Brand:
Product Code: CTF-25

พัดลมรุ่น CTF-25  ขนาดเล็ก เหมาะสำหรับอากาศหมุนเวียนในงานสาธารณูปโภคใต้ดิน ทำความสะอาดบ่อบำบัดหรือแท๊งค์น้ำ งานดูดขจัดกลิ่น ฝุ่นหรือไอ จากงานในขบวนการผลิตอาทิเช่นงานเชื่อม,เจียรไน,กลึง,อ๊อก,ชุบงานจ่ายอากาศขณะติดตั้ง สามารถต่อต่ออ่อนส่งลมได้ไกล หรือใช้กับถุงกรองฝุ่นในพื้นที่ปิด

คุณสมบัติ
1) ประหยัดพลังงาน
2) ขนาดเล็ก เคลื่อนย้ายสะดวก
3) เสียงเงียบเบา แต่ให้ลมที่แรงมาก
4) ทำงานต่อเนื่องได้นาน 6-8 ชม.
5) ทำจากวัสดุคุณภาพ แข็งแรงทนทาน

Model no. CTF-25 Color: red
Type: Axial Flow Fan
Electric Current Type: AC
Mounting: Movable and hand-push fan
Blade Material: aluminum
Usage: Ventilation, cooling
Usage temperature: 0-70°C
Motor: Pure Copper
Impeller/bade: die-casting aluminum alloy
The protection grade is IP55
Certification: CCC, CE, CSA, ROHS, SASO, SAA, EMC
Warranty: Motor 1 Year


รายละเอียดสินค้า
Model Number                   CTF-25 (250 mm.10'')
Electric Current Type          A.C. Single Phase
Blade Materia                     aluminum alloy
Voltage                             220 V
Power                               300/350 W
Frequency                          50/60 HZ
Air Volume                          45/55 m³/min
Speed                                2800/3300   r/min
Noise                                  66 dB(A)
Fan                                    Industrial fan
Portable fan                        draught fan

Detailed Product Description
1)saving energy
2)strong wind power
3)convenient to move
4)light weight

features
1)saving energy
2)strong wind power
3)convenient to move
4)make low noise and light weight due to die-casting aluminum alloy.
5)with good capacity,the reasonable structure and the strong suction.

Application
1)working sewer and cable
2)blowing bad gas when welding shipbuilding,canning,bridge.
3)exhaust for fire fighting,piping construction and in other violent working situation for ventilation.

ตัวอย่างการใช้งาน
